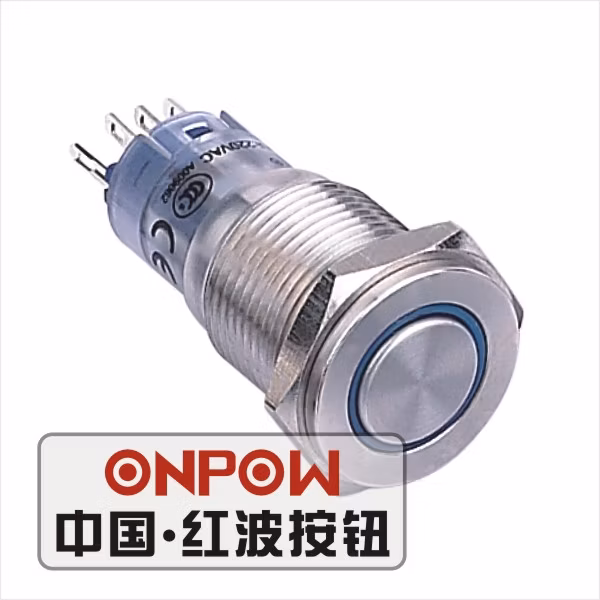

Part number:LAS2-GQPF-11E/LED color/LED voltage/Crust material
Diameter: 16mm
Switching rating: 3A/250VDC
Contact configuration: 1NO1NC(11) (other option: 2NO2NC(22))
Operation type: Momentary (other option: Latching (Z))
Crust material: Stainless steel (S) / Nickel Plated Brass(N)/
Ring illuminated
LED color: Blue (other options: Red, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Front shape:Super Flat Head+Flat actuator
IP degree: IP67 (other option: IP40)
Terminal type: Pin terminal (1.8X0.4mm)
Approval: CE, CCC,RoHS
Switch Ratings
Lamp ratings
Note:DC LED and other voltage can be made to order.
Specifications
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Website: hongbocn.en.made-in-china.com http://hongbocn.en.made-in-china.com
Work time: 8:00-11:30 13:00-17:30(Except Sunday)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/af93adc428036d822c8bf2784f0e3ee5.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/5bd0f9c9a2b9ca1fb2dc747f4e3b29e3.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/aeffe51d90de9271d637caff0f0328f5.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/0662843d0e41de009d9c6fa64ffaadad.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/d35ec95cbcd18b83b98dc06caa579661.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/06b784b19d57bace9b0ade190be97a49.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/aa66e6bc7d8248ff7873c56eced9d1fb.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/dc99c442ffa1deb2f95753c46ef895ff.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/323a90df4de30772840ee22e9f433722.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/6abc57a5cbc815333852fd19df5342ff.webp)
![Onpow 16mm Push Button Switch (LAS2-GQPF-11E/R/12V/S, CE, CCC, RoHS, REECH)](https://img3.grofrom.com/grewave/c7b3ded5604ed09fbf04b63fc1aa03b6.webp)
Diameter: 16mm
Switching rating: 3A/250VDC
Contact configuration: 1NO1NC(11) (other option: 2NO2NC(22))
Operation type: Momentary (other option: Latching (Z))
Crust material: Stainless steel (S) / Nickel Plated Brass(N)/
Ring illuminated
LED color: Blue (other options: Red, Green, Yellow, Orange, white)
LED voltage: 12V (other options: 6V, 24V, 110V, 220V)
Front shape:Super Flat Head+Flat actuator
IP degree: IP67 (other option: IP40)
Terminal type: Pin terminal (1.8X0.4mm)
Approval: CE, CCC,RoHS
Rated Insulation Voltage | Ui:250V | |||||
Thermal Current | lth:3A | |||||
Rated Voltage | 12V | 24V | 110V | 220V | ||
Rated Operation Current | AC 50/60Hz | Resistive load | 1A | 0.5A | ||
Inductive load | 0.7A | 0.5A | ||||
DC | Resistive load | 1A | 1A | 0.2A | ||
Inductive load | 0.7A | 0.7A | 0.1A | |||
Contact material | Sliver Alloy |
Lamp ratings
Lamp type | LED Lamp(AC/DC) |
Rated voltage | AC/DC6V,AC/DC12V,AC/DC24V,AC/DC36 V,AC/DC110 V,AC/DC250 V |
Rated Current | 5~48V About 15mA;110~250V About 2mA |
LED color | Red,Green,Yellow,Orange,Blue,White |
Life | About 40,000 hours |
Dropping Way | Inner resistance;Outer resistance when using 6V lamp |
Lamp Circuit | Using AC/DC LED lamp,the terminal is have no difference of anode and cathode:Using inner resistance,do not need connect outer resistance. (Using 6V lamp when the lamp voltage is above 60V,and need connect outer dropping resistance.) |
Specifications
Operating Temperature | -25ºC~+55ºC(no freezing) Keep the air flowing around illuminated on pushbutton |
Operating Humidity | 45~85%RH(no condensation) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectric Strength | 2000V,AC 50Hz,5 seconds |
Vibration Rasistance | 50Hz,Amplitude 1.2mm |
Shock Rasistance | >10g |
Solder Heat Resistance | 320ºC(or 30W soldering iron)no more than 2 seconds |
· Pls contact us for BEST PRICE!!
Also we can meet your special requirements:
1. Laser engraving for different symbol or Illuminated symbol.
2. Different metal body color can be made, like Red, Green, Yellow, Blue, White, Orange, Golden.
3.Special design for big diameter up to 35mm or small diameter to 8mm.
4. We accept different terms of payment, like PAYPAL, ESCROW and so on.
5.Other special requirement pls contact Mr. Puma (International trade manager)
Puma chen
ONPOW / ONPOW PUSH BUTTON MANUFACTURE CO., LTD.
Address: Sibanqiao Industrial Zone, Xiangyang Town, Yueqing City, Zhejiang Province, China. 325619
Website: hongbocn.en.made-in-china.com http://hongbocn.en.made-in-china.com
Work time: 8:00-11:30 13:00-17:30(Except Sunday)
