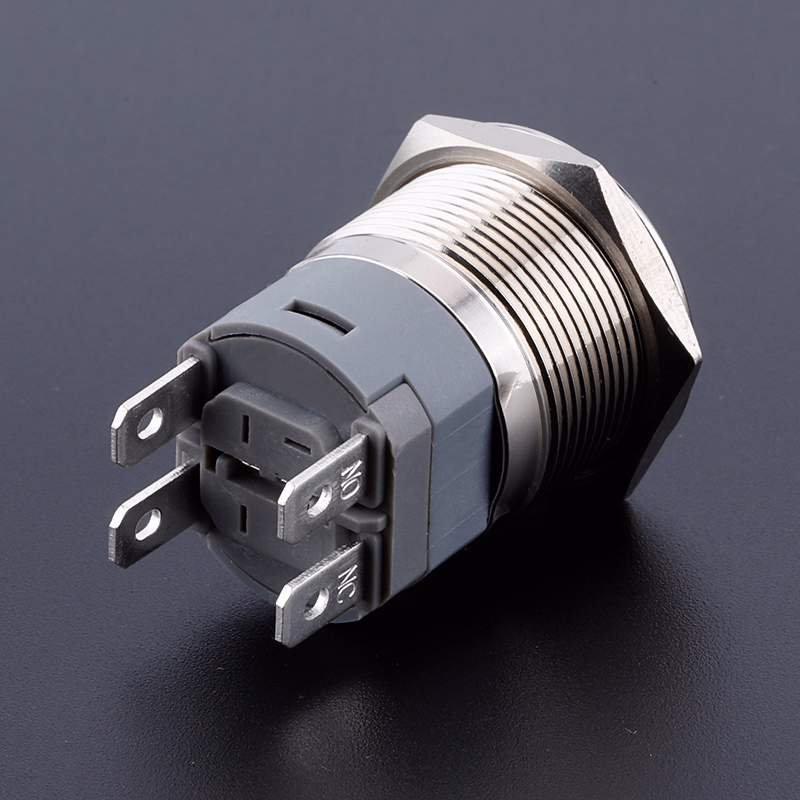

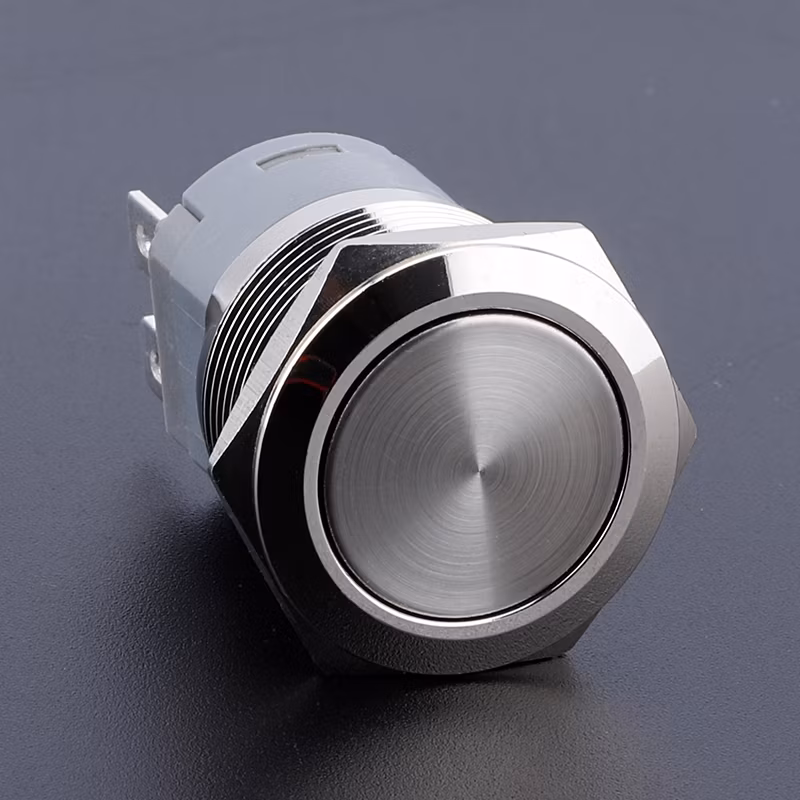

![22mm 15A Metal Electric 2pins High Current Momentary Push Button 12V 24V Auto Switchs](https://img3.grofrom.com/grewave/32a9bb1147cf650c5cadebc0ee5a57b4.webp)
Material: Durable Stainless Steel button and body, Plastic, Electric Parts.
Switch rating: 15A/250V AC. Easy to install: Screw clamp-type terminals, don't need to solder.
A push-button is a momentary or non-latching switch that causes a temporary change in the state of an electrical circuit only while the switch is physically actuated. An automatic mechanism (such as a spring) returns the switch to its default position immediately afterward, restoring the initial circuit condition.
Operating temperature: -20~+55 ºC. Contact resistance: less than 50 MΩ. Insulation resistance: over 1000 MΩ.
Commonly used as vehicle horns, ignition switch, doorbells, home appliances button, and car, engineering equipment project.
Momentary: The button moves downward only when the button hand is pressed, button back if take hands-off.
Mounting hole:19mm
Dielectric Strength: 2000VAC/min
Mechanical Life: over 1000,000 times
Contact: Silver Alloy
Dielectric Strength: 2000V AC/min
Environment Temperature: -20 ºC ~ + 50 ºC
Easy to install, it has non-solder connections,screw-type terminals to make fitting very easy.
These big button face reset switches are perfect for the doorbell, coffee machine, horn button switch, PC power switch, or any circuit controls. Also great for electronic DIY projects.
Product Name | Indicator light |
Model | IB22K2-P10F |
Mounting Hole | 22mm |
Operation Type | Momentary |
Switch Combination | 1NO |
Actuator Shape | Flat round Head |
Terminal type | Solder terminal |
Illuminated or not | NO |
Led Voltage | 3V-220V |
Led Color | Blue |
Illuminated Type | Ring led and power logo |
Enclosure Material | Brass nickel/Stainless steel |
Delivery Days | 1-7 days |
Contact Resistance | 50 mΩ max |
Insulation Resistance | 1000MΩ Min |
Dielectric Intensity | 2000VAC |
Operating Temperature | -20°C ~+55°C |
Customized symbol, colored housing or Connector | Acceptable and with fast shipping |
Accessories | Nut, Rubber Waterproof O-ring |
Customized Order Confirm | 1. What Led Color? 2. What Led Voltage? |
What You Get | 1X push button switch: 22mm,15A |
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery
Q8: How do you make our business long-term and a good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is the Momentary function?
A: When you push the switch and then move your finger, the actuator will back to the original position.
Q10: What is the Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to the original position.
