Product Description:

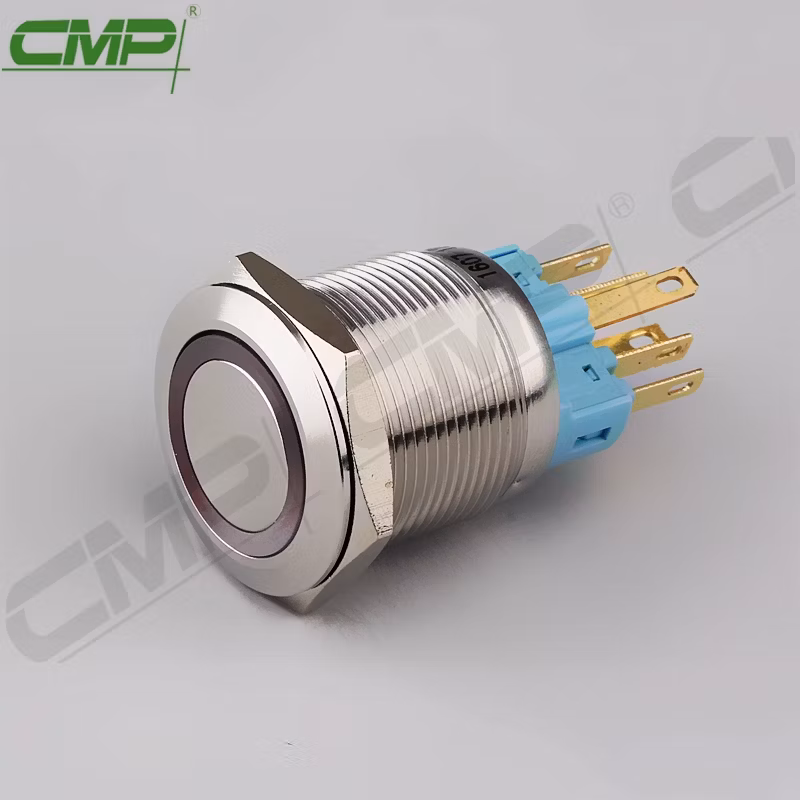

metal waterproof 22mm led illuminated latching 6 pin push button switch
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/82acda3904f284aef8205d5fbe7bc7ac.webp)
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/d6818b20c3be8a5cdc8bb9b65fc06243.webp)
We can custom made the laser marking on the button.
Please feel free to contact me for more detail.
Certification:
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/9502b40fad2505a69f8848083d2140db.webp)
Categories:
Our company is push button switch and indicator light manufacturer for more than 10 years. We have a wide variety of high quality switch and light products. If you are interested in these products, please feel free to send the inquiry. We can provide the factory price, and any detail can be discussed.
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/5e9b94c7fda08488903522207bdb3ed3.webp)
Packaging:![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/0746c3025e4d730736253d96e0ce193e.webp)
metal waterproof 22mm led illuminated latching 6 pin push button switch
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/82acda3904f284aef8205d5fbe7bc7ac.webp)
Product | Push Button switch |
Item | MP022S/F11Z-E |
Thread Diameter: | 22mm |
Operation type | Momentary (MP022S/F11-E |
Latching (MP022S/F11Z-E | |
Housing material | Stainless steel |

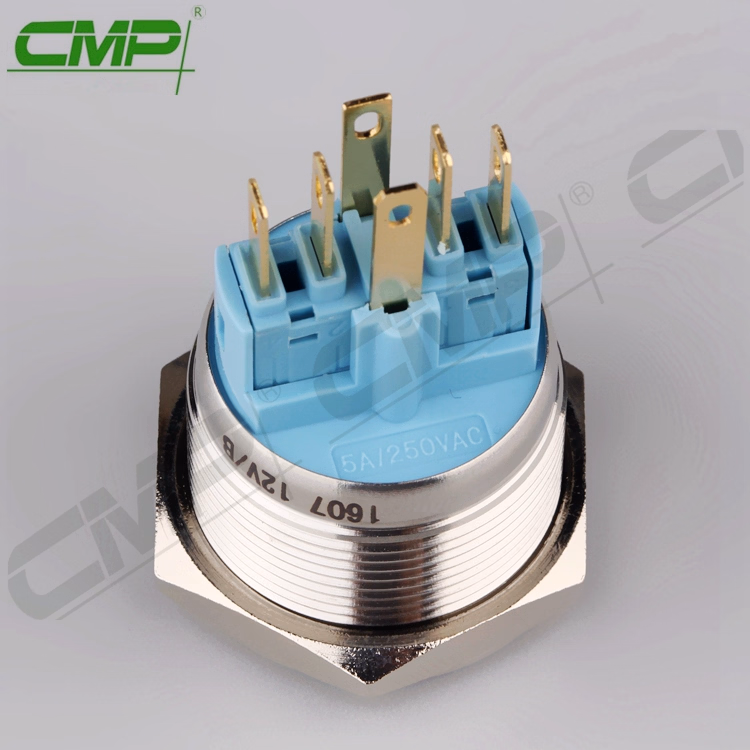

Contact configuration | 1NO1NC (4 pins for switch,micro switch) |
Switch rating | 5A/250V AC/DC |
Terminal type | 6 soldering pin |
Contact terminal material | silver plated gold |
Contact | silver plated gold |
Button type | Flat button with ring light |
Button color | silver or made to order |
LED color | red,green,white,blue,yellow,orange |
LED voltage | 2V/6V/12V/24V/110V/220V (made to order) |
Contact Resistance | ≤50mΩ |
Insulation Resistance | ≥1000MΩ |
Dielectrical Intensity | 2000VAC |
Vibration Resistance | 10~55HZ, amplitude 1.2mm p-p |
Mechanical life: | ≥500,000 cycles |
Electrical Life: | ≥200,000 cycles |
Operating Temp | -20ºC~+75ºC |
Torque | 5-14Nm |
Operation Pressure | about 5.5N |
Operation Travel | About 2.5mm |
Protection Level | IP65/IP67 IK10 |
Soldering Temperature | 20W/5 seconds or 260 °C/3 seconds |
Certificate | CE,TUV,Rohs |
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/d6818b20c3be8a5cdc8bb9b65fc06243.webp)
We can custom made the laser marking on the button.
Common description for metal push button switch | |
Momentary | When you push switch and then move your finger, the actuator will back to the original position. |
Latching | When you press the button, it keeps pressed until you press again |
N.O. | Normally Open |
N.C. | Normally Closed |
SPST | Single Pole Single Throw |
DPDT | Double Pole Double Throw |
Contact | Wonderful material with silver plated gold |
Please feel free to contact me for more detail.
Certification:
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/9502b40fad2505a69f8848083d2140db.webp)
Categories:
Our company is push button switch and indicator light manufacturer for more than 10 years. We have a wide variety of high quality switch and light products. If you are interested in these products, please feel free to send the inquiry. We can provide the factory price, and any detail can be discussed.
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/5e9b94c7fda08488903522207bdb3ed3.webp)
Packaging:
packaging:
inner bubble box--- inner box---carton (or by your request.)
Shipping :
DHL, EMS, TNT, Fedex, UPS and others international express
![Metal Waterproof 22mm LED Illuminated Latching 6 Pin Push Button Switch](https://img3.grofrom.com/grewave/0746c3025e4d730736253d96e0ce193e.webp)
We strive to provide excellent customer service. Please feel free to contact me for more pictures or details.We will reply within 24 hours.
