12mm 2A Momentary IP68 Touch Button Waterproof Metal Piezo Switch
Product description
Electrical Function
Contact Arrangement : SPST N.O.
Voltage:3 - 24V AC/DC
Switching Current: 2A
Illuminated Option: NON-Illuminated
Mechanical Properties
Material: Stainless Steel or Aluminum
IP Protection IP68
Anodize Colors Natural
Operating Temperature -40°C to 75°C (Momentary Only)
Note: If you need Customized actuator color, please inform us by mail, thanks!

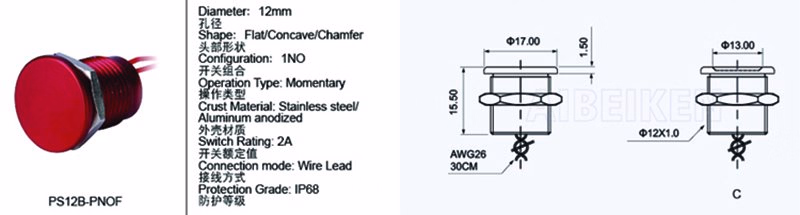

| Product Name | IP68 Waterproof Piezo Switch |
| Model | PS12B-PNOF/S |
| Mounting Hole | 12mm |
| Operation Type | Momentary (Reset) |
| Switch Combination | 1NO |
| Actuator Shape | Flat Round Head |
| Cable Length | 300mm long |
| Current | 2A |
| Enclosure Material | Stainless Steel 316L (or Silver Aluminum oxidized) |
| Operating Force | 6 to 15N |
| Life Expectancy | 50 Million cycles |
| Waterproof Degree | IP68 |
| Operating Temperature | -40°C ~+75°C |
| Customized colored housing or Connector | Acceptable and with fast shipping |
| Accessories | Nut, Rubber Waterproof O-ring |
| What You Get | 1X Piezo Switch: 12mm, Momentary, Stainless steel |
Q1. What is your terms of piezo switch packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the Piezo Switch samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q9: What is Piezo Switch Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q10: What is Piezo Switch Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
If you have any other question, please send us an enquiry,we will reply you ASAP.
